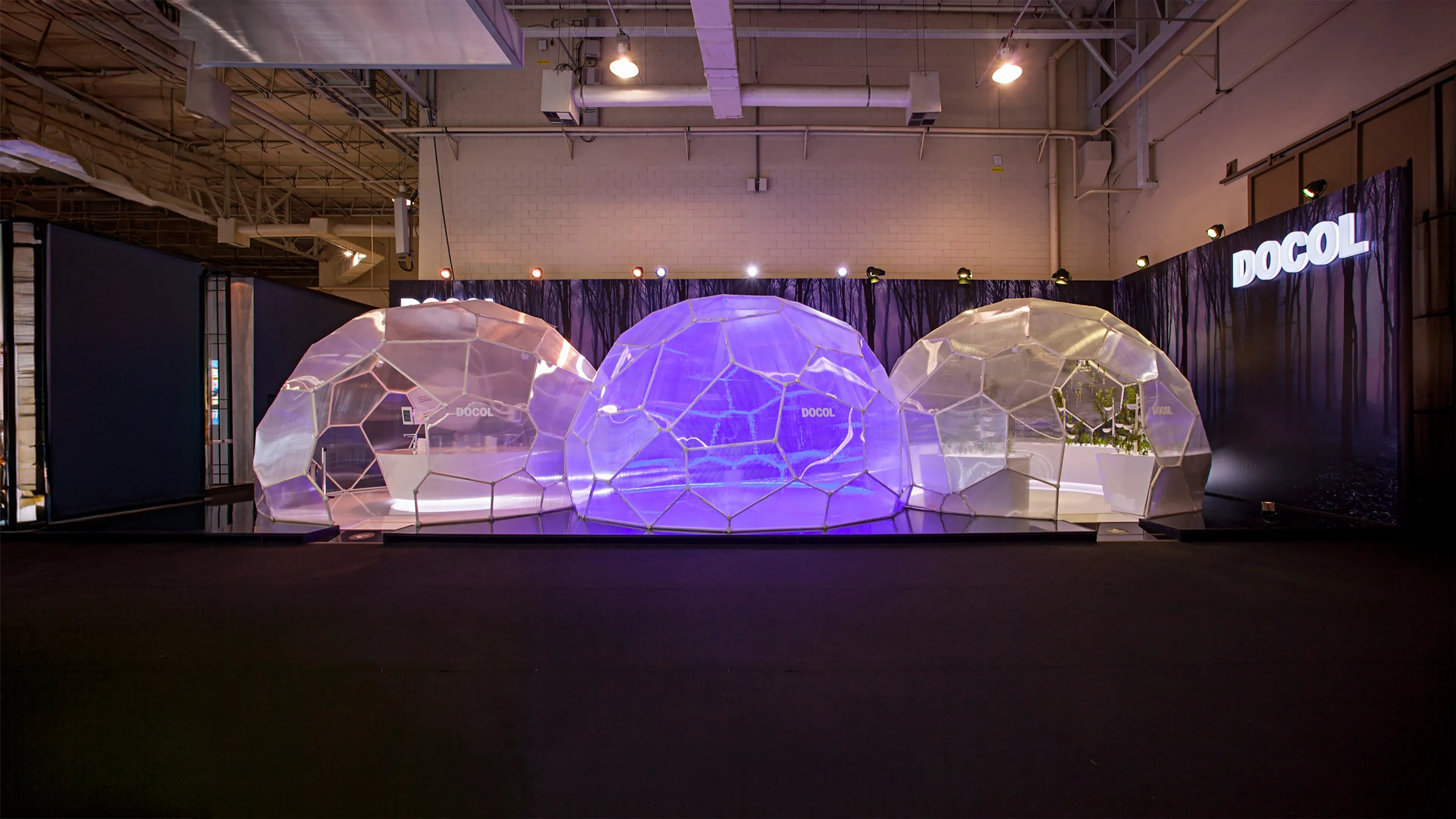

Photo of O3 Pavilion front view. Copyright by Gui Morelli.

O3 Pavilion by Atelier Marko Brajovic for Docol

Date 2017-02-01
Author Atelier Marko Brajovic
Client Docol
Director Marko Brajovic
Manager Bruno Bezerra
Team Fernanda Zanetti, Fernanda Matos, Natalia Winnicka, Daniel Locatelli
Development Paleta Stands
Place Expo Revestir 2017
Link O3 Pavilion at Atelier Marko Brajovic

Concept

O3 Pavilion was inspired by the ozone trioxide molecule. The three atoms of oxygen become three spaces of experience of the concept pavilion of the Docol. Each atom has a unique multi-sensory experience which contextualizes the public in relation to the respective products on display.

Atelier Marko Brajovic

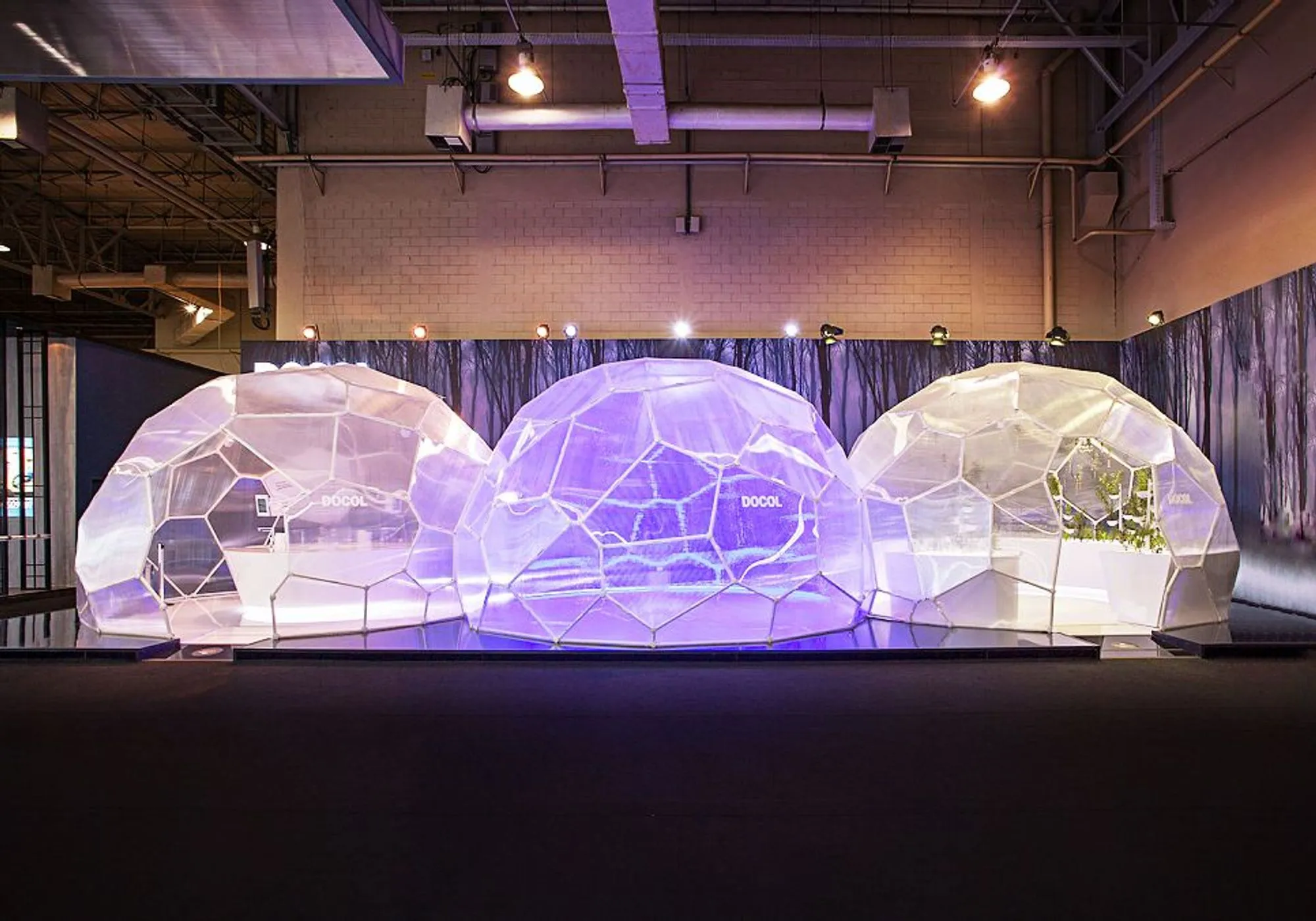

Full scenography for the O3 pavilion.
Full scenography for the O3 pavilion.
Left cell: Docol ozone taps.
Left cell: Docol ozone taps.
Right cell: sustainable lab look.
Right cell: sustainable lab look.

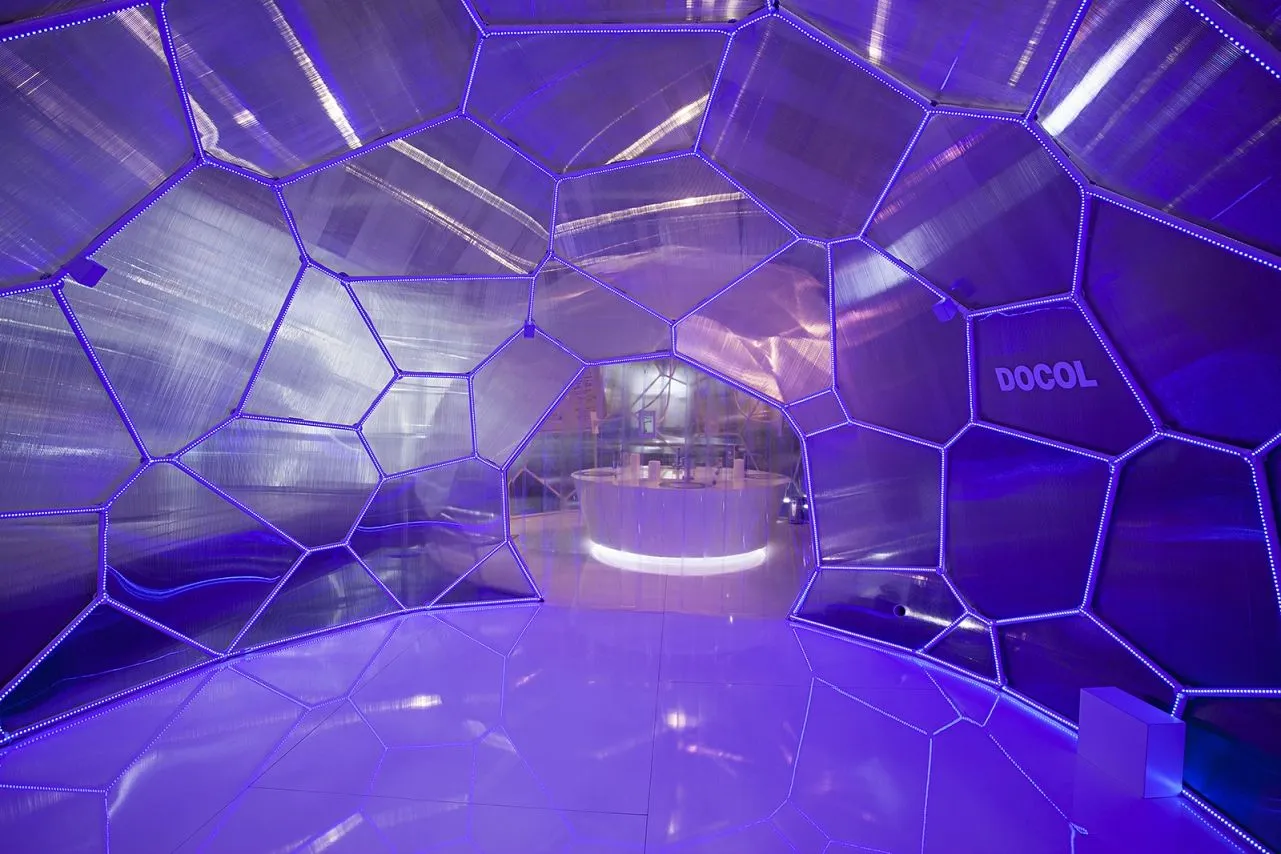

Interior of the middle cell: Rain sounds and LEDs simulating lightnings.
Interior of the middle cell: Rain sounds and LEDs simulating lightnings.

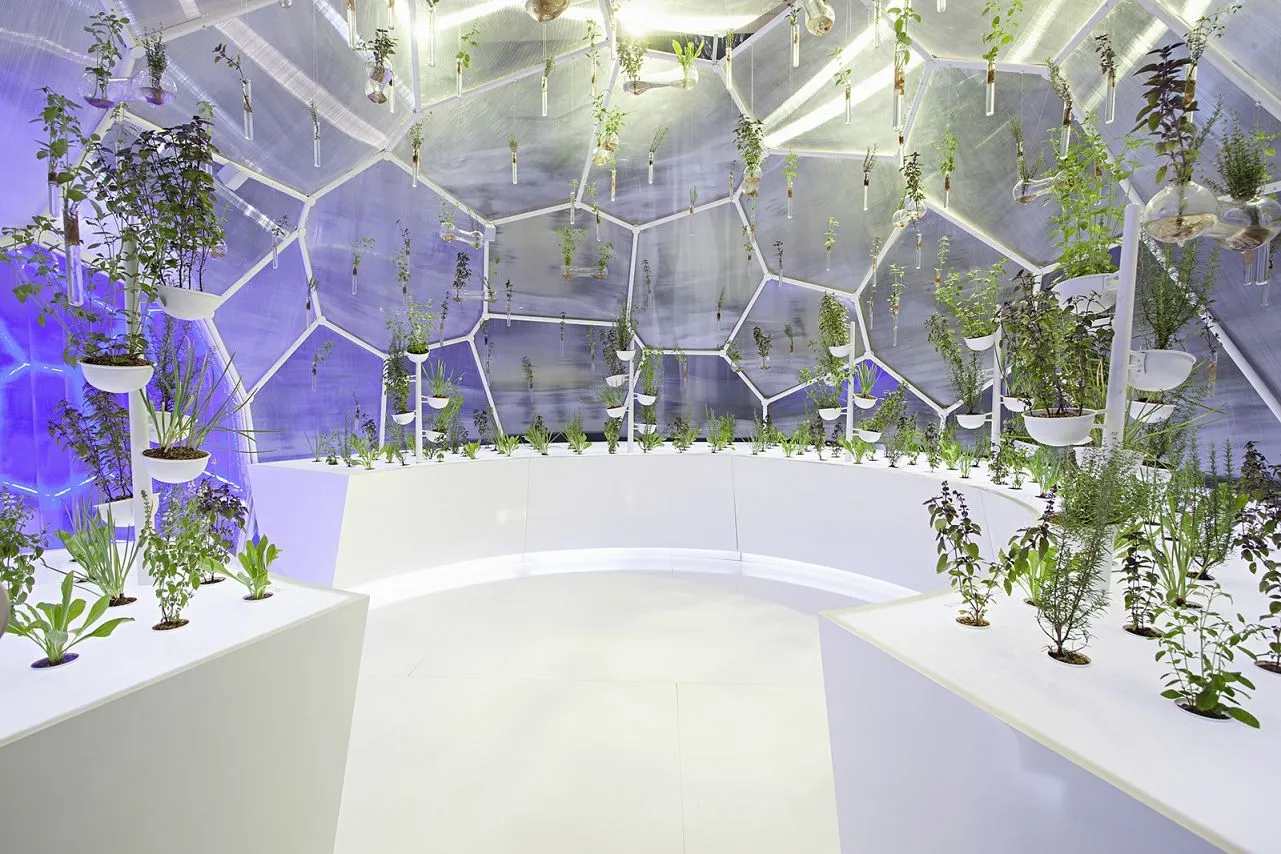

Interior of the right cell.
Interior of the right cell.

Computational Design

The O3 Pavilion was conceptualized by the Atelier Marko Brajovic at the same time that I was taking my first steps into the computational design world. I had just graduated from FAU-USP with a thesis in which I learned all the tools necessary to finish this pavilion: Rhino, Grasshopper 3D and Kangaroo Physics.

My role in this project was to work on the form-finding and the production of data for digital fabrication.

Form Finding

The form-finding was specially tricky in the intersection between domes. Because each dome had a unique shape, the Voronoi cells at the intersections did not match. I had to use the Kangaroo plugin to force opposite dome cells into the same shape. And in doing so, the rest of the pavilion had to relax while keeping the domes planarity.

Animation of the form-finding: Kangaroo forcing cells to be planar.
Form-finding: Kangaroo forcing cells to be planar.

This is the latest Grasshopper file I used in the project:

3_Domos_Kangaroo_v19.gh

Fabrication

The fabrication process wasn’t on our hands though. It was under a sub-contractor in the south of Brazil: Paleta Stands. There was a big logistic puzzle on the pre-fabrication and transportation which I was not part of, unfortunately. This is exactly what I talk about in the paper presented at the SIGraDi 2018 conference in São Carlos, Brazil.

You can check the paper here:
High-Low as Expression of The Brazilian Digital Fabrication

Animation with the sequence of assembly.
Sequence of assembly.

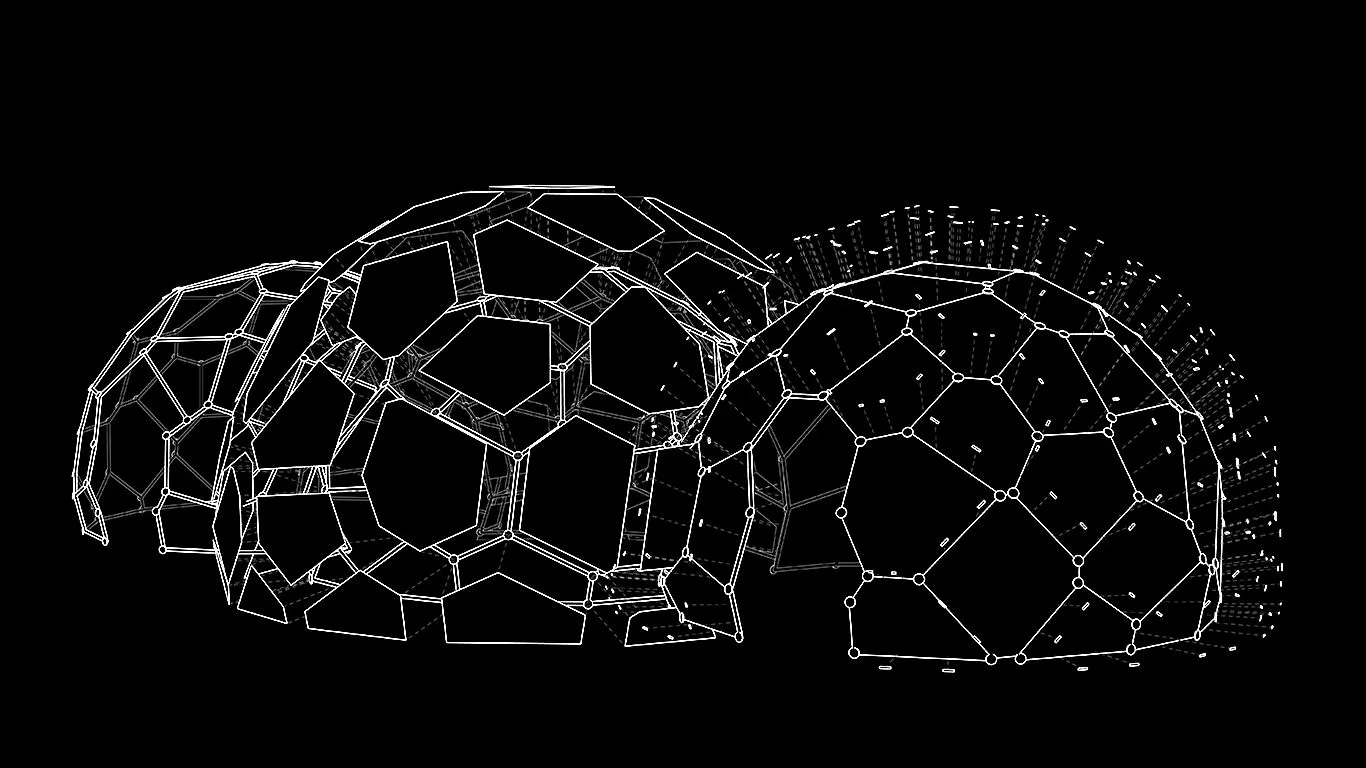

Phases of construction in a exploded perspective.
Phases of construction in a exploded perspective: steel welding, panel fitting and fixing pieces.

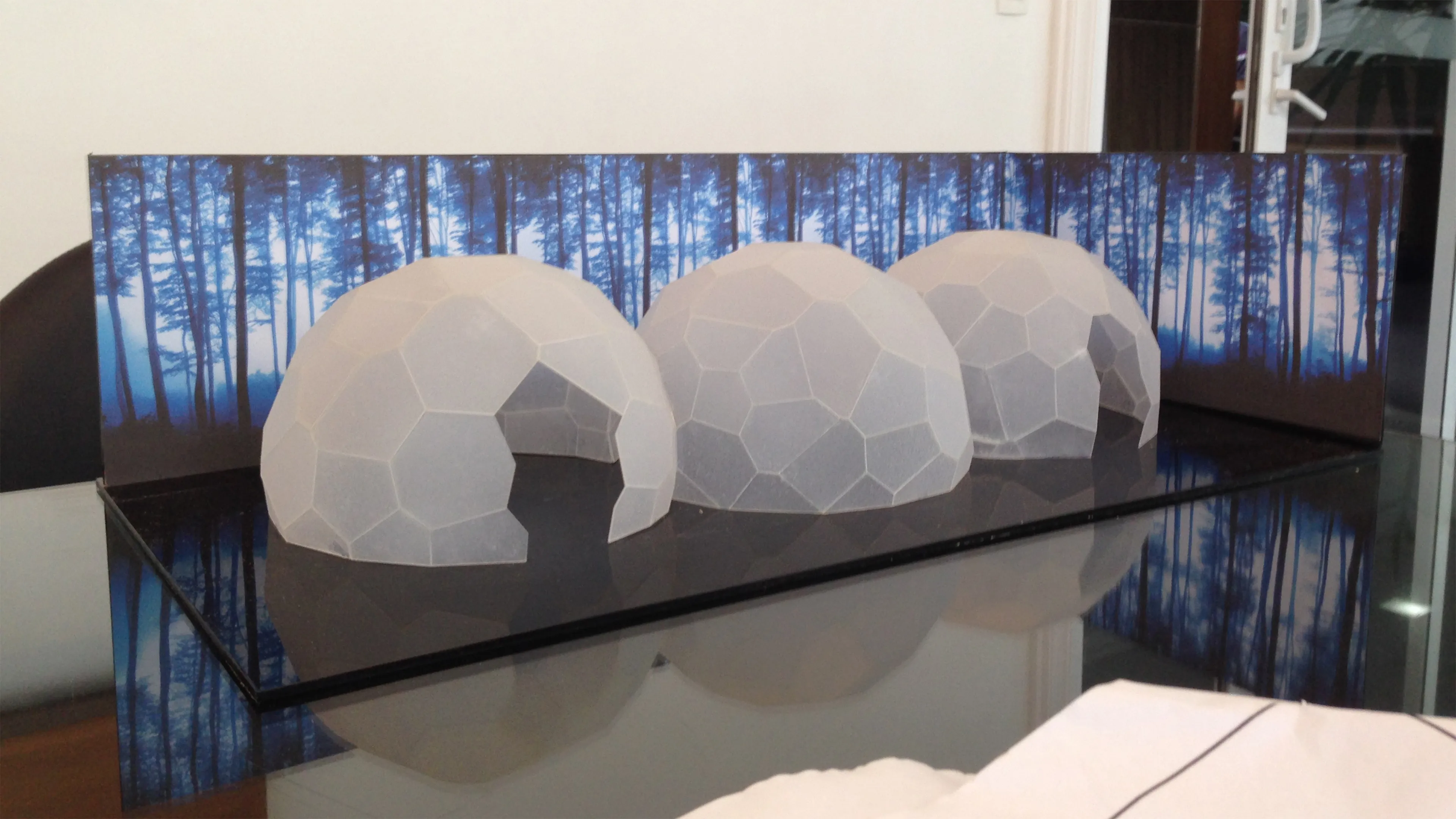

Photo of the small scale model of the pavilion.
Small scale model of the pavilion.

Photo of blacksmiths studying the small scale model.
Blacksmiths studying the small scale model.
